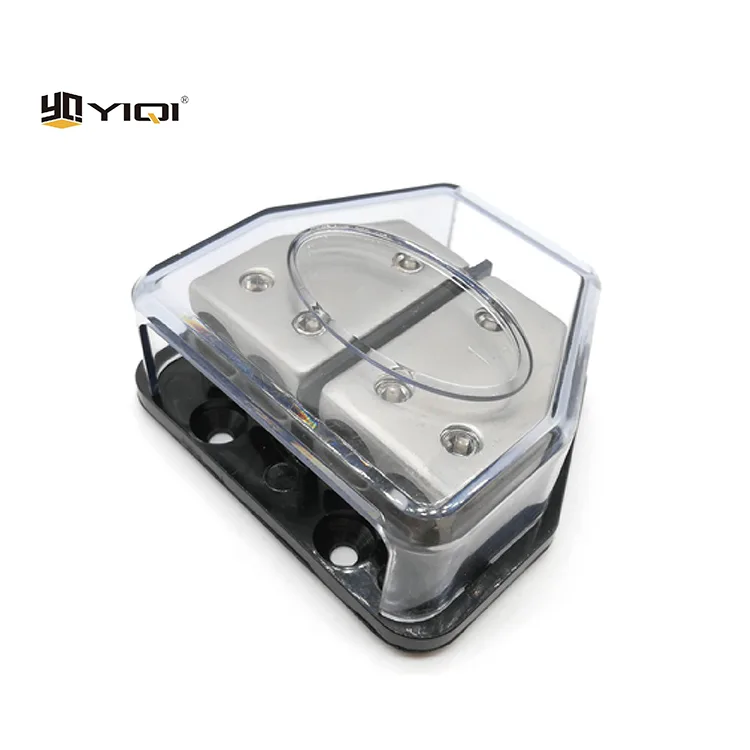

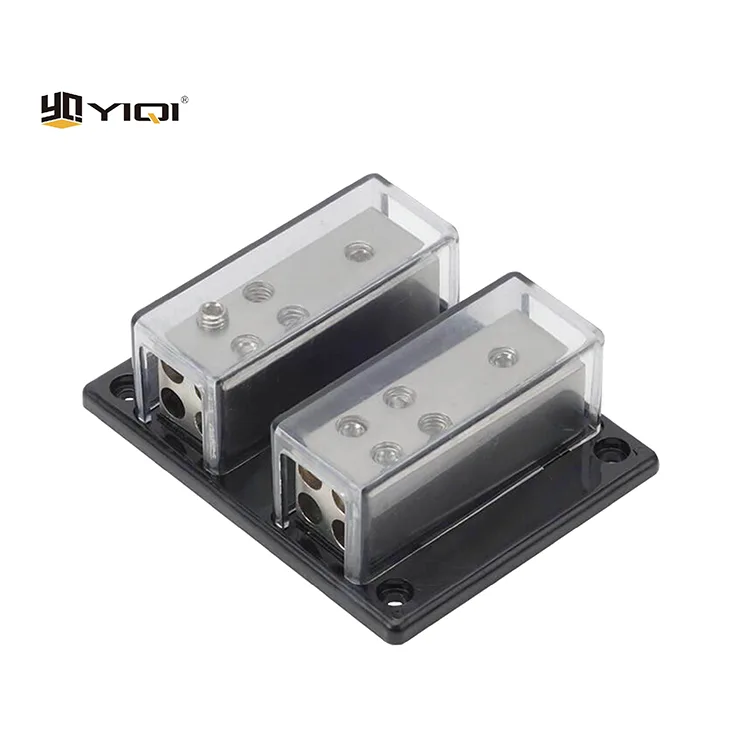

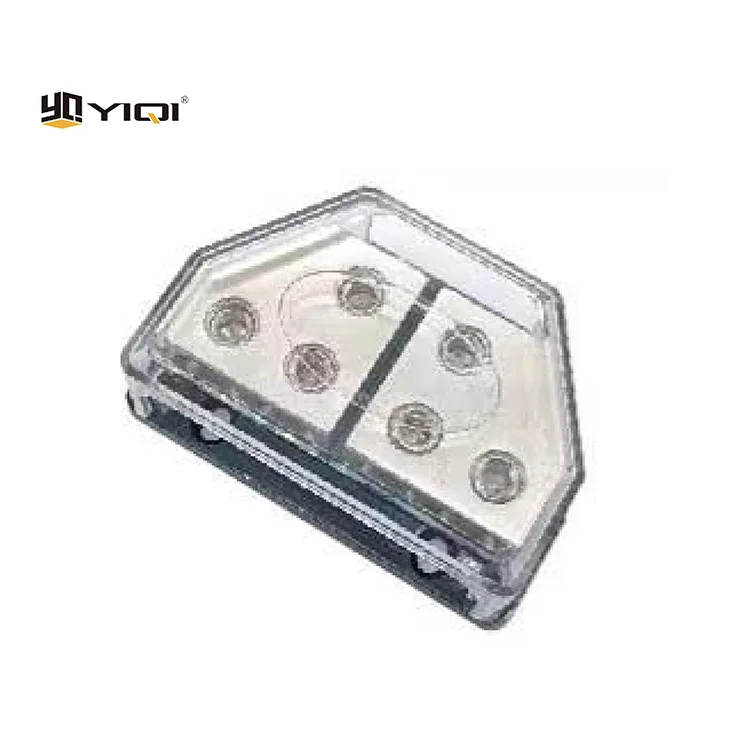

Double-row Type High-density Multi-port Vehicle Power Panel

The YIQI Double-row Type High-density Multi-port Vehicle Power Panel (model DB-36) is designed to solve the core challenge of efficient power distribution in modern multi-device automotive environments. Its innovative dual-row structure is the core of the design, achieving extremely high port density while maintaining an orderly and rational wiring layout. This dual design of "maximizing connection quantity and minimizing wiring clutter" directly addresses the core pain points of automotive electrical upgrades: limited space and complex wiring.

By consolidating multiple circuits into a compact unit, this distribution board significantly simplifies the installation process, greatly reducing manual labor and the possibility of wiring errors. It is an ideal solution for scenarios requiring simultaneous power supply to multiple devices, such as advanced car audio systems, fleet vehicle auxiliary equipment, RV living areas, and marine onboard electronics.

Product Specification

Key Features and Benefits

1. Ultra-High Density Design

The dual-row structure integrates as many connection ports as possible into a minimal volume, ideal for space-constrained installations.

2. Superior Manufacturing Quality

The Double-row Type High-density Multi-port Vehicle Power Panel is constructed with a durable zinc alloy base and high-quality PC plastic, offering excellent mechanical strength, corrosion resistance, and thermal stability, ensuring long-term stable use in harsh automotive environments.

3. Optimized Circuit Management

The orderly layout achieves clear physical separation between circuits, preventing electrical interference and creating a clean, professional installation, significantly simplifying system maintenance, troubleshooting, and future upgrades.

4. Safe and Stable Connections

Designed for secure cable mounting, ensuring stable current transmission across all ports and eliminating voltage drops and connection failures caused by vibration or loose cables.

5. Wide Compatibility

The Double-row Type High-density Multi-port Vehicle Power Panel's universal design supports 12-48V electrical systems, allowing seamless integration into various vehicles and mobile devices.

6. Flexible Customization Services

YIQI offers comprehensive OEM/ODM services, including customized branding, port configurations, and mechanical modifications to meet specific customer project needs.

Real-world Application Case

Case Study: Off-grid Power System for Luxury RVs

A high-end German RV conversion company specializing in high-end adventure vehicles needed a sophisticated power management system for its 48V off-grid system. This system integrated a 10 kWh lithium-ion battery pack, a solar charging array, an inverter, and more than 15 independent DC loads (such as lighting, water pumps, refrigerators, control panels, and entertainment systems).

Challenge: The electrical compartment was extremely compact, and the customer required clutter-free wiring for easy maintenance and a high-end look.

Solution: The YIQI DB-36 Double-row Type High-density Multi-port Vehicle Power Panel was selected. Its 12-48V compatibility perfectly matches 48V battery systems, and its dual-row high-density design concentrates all 15+ circuits within a compact 68mm unit.

Results: Installation achieved professional factory-grade quality. Clear circuit separation reduced system diagnostic time by 60%. The robust zinc alloy structure effectively withstood continuous vibrations and temperature variations during intercontinental driving, demonstrating excellent performance.

Partnerships and Supply Solutions

YIQI maintains long-term strategic partnerships with automotive system integrators, professional distributors, and global sourcing partners. We offer highly flexible cooperation models to meet diverse business needs:

1. Bulk Supply

Dedicated production lines for large-scale project procurement.

2. Trial Orders

Small-batch trial orders for product testing and verification before full-scale procurement.

3. OEM and Brand Customization

Providing complete original equipment manufacturing services, including customized logo printing and packaging.

4. Long-term cooperation agreement

Sign strategic supply contracts to ensure stable prices, consistent quality, and on-time delivery for ongoing projects.
