High Breaking Capacity Ceramic ANL Fuse Holder for Reliable High Current Circuit Protection

Modern electrical systems such as automotive power networks, marine equipment, energy storage systems, and industrial DC applications require reliable protection components to prevent damage caused by overloads and short circuits. High-current fuse holders play an important role in maintaining electrical safety by providing secure connections and stable protection performance.

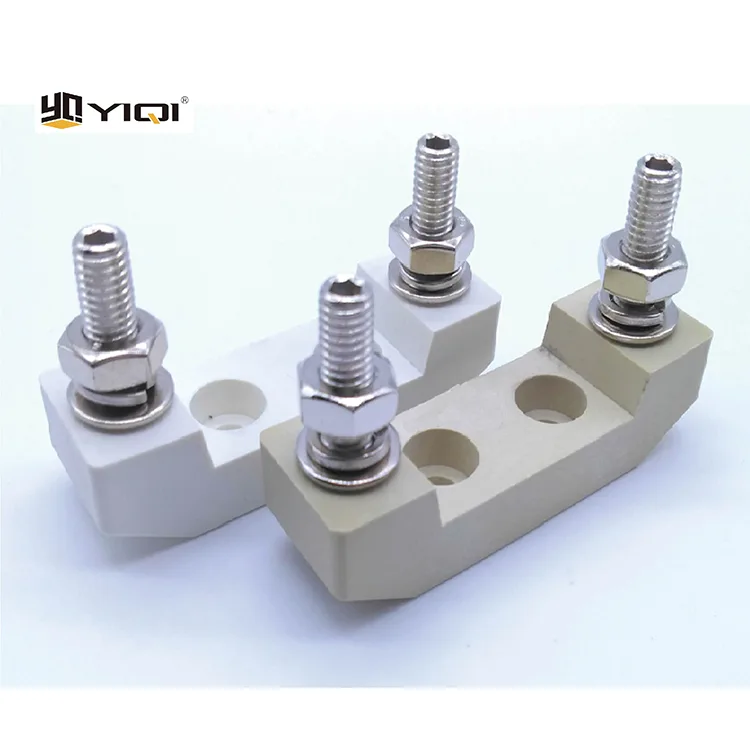

The High Breaking Capacity Ceramic ANL Fuse Holder from YIQI is designed for high-current circuit protection applications where heat resistance, electrical reliability, and breaking performance are critical. Featuring a ceramic structure and optimized contact design, this fuse holder provides a durable solution for demanding DC power systems.

For distributors, OEM manufacturers, and electrical system integrators, selecting the right fuse holder requires consideration of rated current, breaking capacity, material performance, installation environment, connection reliability, and long-term operating stability.

What Is a High Breaking Capacity Ceramic ANL Fuse Holder?

High Current Circuit Protection Component

An ANL fuse holder is a protective component used to securely install ANL fuses in high-current electrical circuits. It provides mechanical support for the fuse while ensuring reliable electrical connection between the power source and protected equipment.

The High Breaking Capacity Ceramic ANL Fuse Holder uses ceramic insulating materials to improve heat resistance and electrical insulation performance, making it suitable for applications where standard plastic fuse holders may not meet higher temperature or current requirements.

Designed for High Power DC Systems

High-current electrical systems can experience sudden overloads or short-circuit conditions. A suitable fuse holder must maintain stable contact performance while supporting fast fault interruption through the installed fuse.

YIQI develops fuse holders and electrical protection components for automotive, marine, industrial, and customized power distribution applications. :contentReference[oaicite:0]{index=0}

Core Parameters

Specific parameters including rated current, voltage range, terminal size, fuse compatibility, installation dimensions, and certification requirements should be confirmed according to the final application system.

Advantages of Ceramic ANL Fuse Holder Design

Excellent Heat Resistance

High-current circuits generate heat during operation, especially under heavy loads. Ceramic materials provide better thermal stability compared with many conventional insulating materials.

This helps maintain structural reliability and reduces the risk of performance degradation caused by high operating temperatures.

Reliable Electrical Insulation

The insulating performance of the fuse holder directly affects system safety. Ceramic materials offer stable insulation characteristics, helping reduce the possibility of electrical leakage and insulation failure.

This makes ceramic fuse holders suitable for applications requiring enhanced electrical protection.

Stable High Current Connection

Reliable contact between the fuse and terminals is essential for preventing overheating and voltage loss. A well-designed connection structure improves current transmission efficiency and supports long-term operation.

Working Principle of ANL Fuse Protection System

Overcurrent Protection

When abnormal current exceeds the rated limit, the ANL fuse element melts and interrupts the circuit, preventing excessive current from damaging connected electrical equipment.

The fuse holder provides a secure mounting platform and maintains electrical continuity during normal operating conditions.

Fault Isolation

In the event of short circuits or severe overload conditions, the fuse system quickly separates the faulty circuit from the power source.

This protection function is important for preventing damage to expensive components such as batteries, inverters, amplifiers, and industrial electrical equipment.

Application Scenarios

Automotive Electrical Systems

Modern vehicles increasingly include high-power electrical components such as audio systems, auxiliary batteries, inverters, and electronic accessories.

The High Breaking Capacity Ceramic ANL Fuse Holder provides reliable protection for these high-current automotive circuits.

Marine Power Systems

Marine environments require electrical components with good durability and resistance to challenging operating conditions.

Ceramic fuse holders can support reliable power protection for boats, yachts, and marine battery systems where safety is essential.

Energy Storage Applications

Battery energy storage systems require effective protection against abnormal current conditions. High-current fuse holders help protect battery packs, power conversion equipment, and distribution circuits.

Industrial DC Equipment

Industrial machines, control systems, and specialized DC equipment often require stable current protection solutions.

A reliable fuse holder helps improve electrical system safety and reduce unexpected equipment downtime.

Key Factors When Selecting an ANL Fuse Holder

Current Rating Compatibility

The fuse holder must match the fuse rating and system current requirements. Selecting an unsuitable current capacity may affect protection performance and operational safety.

Buyers should evaluate continuous operating current, peak current conditions, and equipment power requirements before selection.

Material Performance

The material of the fuse holder affects temperature resistance, insulation capability, and service life.

For high-power applications, ceramic structures can provide advantages in thermal stability and electrical reliability.

Installation Environment

Different applications expose electrical components to different conditions, including vibration, humidity, temperature changes, and mechanical stress.

The selected fuse holder should match the actual working environment to ensure long-term performance.

Quality Control Requirements

Material Inspection

High-quality fuse holders require strict inspection of ceramic materials, terminals, conductive components, and insulating parts.

Consistent material quality helps ensure stable performance across different production batches.

Electrical Performance Testing

Testing procedures should verify insulation performance, current carrying capability, connection reliability, and product durability.

These inspections help ensure that the fuse holder meets customer application requirements.

Manufacturing Precision

Accurate component dimensions and assembly processes influence terminal connection quality and installation reliability.

Professional manufacturing control helps maintain product consistency for OEM and bulk purchasing customers.

Maintenance Recommendations

Regular Connection Inspection

High-current connections should be checked periodically to ensure terminals remain tight and free from corrosion.

Loose connections may increase resistance and generate additional heat during operation.

Check Fuse Condition

Users should inspect the installed fuse regularly and replace damaged or blown fuses with suitable specifications.

Using incorrect fuse ratings may reduce protection effectiveness.

Keep Installation Area Clean

Dust, moisture, and contaminants may affect electrical performance. Maintaining a clean installation environment helps extend service life.

Why Choose YIQI for Fuse Holder Solutions

YIQI specializes in the design and manufacturing of electrical protection components, including fuse holders, fuses, distribution blocks, circuit protection products, terminals, and related accessories. :contentReference[oaicite:1]{index=1}

With in-house manufacturing capabilities covering tooling, injection molding, CNC processing, and production inspection, YIQI provides stable supply solutions for distributors, OEM customers, and industrial buyers. :contentReference[oaicite:2]{index=2}

The company supports customized specifications, packaging requirements, and product solutions based on different application needs.

Final Considerations

The High Breaking Capacity Ceramic ANL Fuse Holder is an important protection component for high-current electrical systems requiring reliable insulation, heat resistance, and stable power connection.

The High Breaking Capacity Ceramic ANL Fuse Holder from YIQI provides a dependable solution for automotive, marine, energy storage, and industrial DC applications where electrical safety and long-term reliability are priorities.

For distributors and engineering buyers, selecting the right fuse holder requires evaluation of current requirements, material performance, installation environment, fuse compatibility, and supplier manufacturing capability. A properly selected protection component can improve system safety and support stable operation of high-power electrical equipment.
